OPTIMAL BS-8624C Brake Discs User Manual

ਜਾਣ-ਪਛਾਣ

This manual provides essential information regarding the installation, operation, maintenance, and specifications of the OPTIMAL BS-8624C Brake Discs. Designed for optimal braking performance and durability, these brake discs are a critical component of your vehicle's safety system. Please read this manual thoroughly before installation or maintenance.

ਇੰਸਟਾਲੇਸ਼ਨ ਗਾਈਡ

Proper installation of brake discs is crucial for vehicle safety and performance. It is highly recommended that installation be performed by a qualified automotive technician using appropriate tools and following vehicle manufacturer specifications.

ਪ੍ਰੀ-ਇੰਸਟਾਲੇਸ਼ਨ ਜਾਂਚ:

• Verify that the OPTIMAL BS-8624C brake discs are compatible with your vehicle's make, model, and year.
• Inspect the brake discs for any signs of damage during shipping. Do not install damaged components.
• ਯਕੀਨੀ ਬਣਾਓ ਕਿ ਤੁਹਾਡੇ ਕੋਲ ਸਾਰੇ ਲੋੜੀਂਦੇ ਔਜ਼ਾਰ ਅਤੇ ਸੁਰੱਖਿਆ ਉਪਕਰਨ ਹਨ।
• Always replace brake discs in pairs (both left and right on the same axle) to ensure balanced braking.

ਇੰਸਟਾਲੇਸ਼ਨ ਪੜਾਅ (ਆਮ ਓਵਰview):

1. ਵਾਹਨ ਨੂੰ ਸੁਰੱਖਿਅਤ ਢੰਗ ਨਾਲ ਚੁੱਕੋ ਅਤੇ ਸਹਾਰਾ ਦਿਓ। ਪਹੀਏ ਨੂੰ ਹਟਾਓ।
2. Remove the brake caliper and old brake disc.
3. Clean the wheel hub thoroughly to ensure a flat mounting surface for the new disc.
4. Install the new OPTIMAL BS-8624C brake disc onto the hub.
5. Reinstall the brake caliper with new brake pads (recommended).
6. Torque all fasteners to the vehicle manufacturer's specifications.
7. ਪਹੀਏ ਨੂੰ ਦੁਬਾਰਾ ਲਗਾਓ ਅਤੇ ਵਾਹਨ ਨੂੰ ਹੇਠਾਂ ਕਰੋ।
8. Perform a bedding-in procedure for the new brakes as recommended by the brake pad manufacturer.

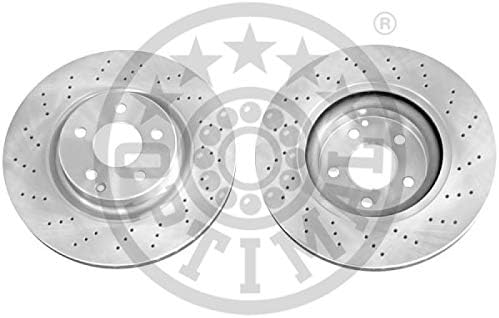

Image: OPTIMAL BS-8624C Brake Discs. This image displays two brake discs, highlighting their drilled surfaces for improved heat dissipation and performance. The central hub area with bolt holes is visible, indicating the mounting points for vehicle installation.

ਸੰਚਾਲਨ ਅਤੇ ਕਾਰਜ

The OPTIMAL BS-8624C Brake Discs are designed to work in conjunction with your vehicle's brake calipers and pads to slow down or stop the vehicle. When the brake pedal is pressed, the brake pads clamp onto the rotating brake discs, creating friction that converts kinetic energy into heat, thereby decelerating the vehicle.

These specific brake discs feature a vented and drilled design. The internal venting allows for air circulation, which helps dissipate heat generated during braking, reducing the risk of brake fade. The drilled holes on the disc surface further aid in heat dissipation and help to clear water, dust, and gases from between the brake pad and disc, maintaining consistent braking performance.

ਰੱਖ-ਰਖਾਅ ਅਤੇ ਦੇਖਭਾਲ

Regular inspection and proper maintenance are essential to ensure the longevity and safe operation of your OPTIMAL BS-8624C Brake Discs.

• ਨਿਯਮਤ ਨਿਰੀਖਣ: Have your brake system, including discs and pads, inspected by a professional at least once a year or every 10,000-15,000 kilometers (6,000-9,000 miles), or as recommended by your vehicle manufacturer.
• ਪਹਿਨਣ ਦੀ ਜਾਂਚ ਕਰੋ: Look for signs of excessive wear, deep grooves, cracks, or warping on the disc surface. Discs that are below the minimum thickness specification must be replaced.
• Brake Pad Condition: Always ensure brake pads are in good condition and replaced when worn. Worn pads can damage brake discs.
• ਸਫਾਈ: Keep the brake area clean from dirt, debris, and corrosive substances.
• ਓਵਰਹੀਟਿੰਗ ਤੋਂ ਬਚੋ: Minimize prolonged heavy braking, especially downhill, to prevent excessive heat buildup which can lead to disc warping or premature wear.

ਆਮ ਮੁੱਦਿਆਂ ਦਾ ਨਿਪਟਾਰਾ ਕਰਨਾ

If you experience any issues with your braking system, it is crucial to have them addressed immediately by a qualified technician. Do not attempt to diagnose or repair complex brake issues yourself unless you are a trained professional.

• Brake Noise (Squealing, Grinding):

  ਸੰਭਾਵੀ ਕਾਰਨ: Worn brake pads, foreign objects, improper installation, disc glazing, or worn discs.
  ਹੱਲ: Inspect brake pads and discs. Clean or replace components as necessary. Ensure proper bedding-in procedure was followed.

• Vibration or Pulsation During Braking:

  ਸੰਭਾਵੀ ਕਾਰਨ: Warped brake discs, uneven pad wear, or loose wheel bearings.
  ਹੱਲ: Have discs inspected for runout and thickness variation. Replace warped discs. Check wheel bearings.
• ਘਟੀ ਹੋਈ ਬ੍ਰੇਕਿੰਗ ਕਾਰਗੁਜ਼ਾਰੀ:

  ਸੰਭਾਵੀ ਕਾਰਨ: Worn pads/discs, air in brake lines, contaminated brake fluid, or caliper issues.
  ਹੱਲ: Professional inspection of the entire braking system is required.

ਤਕਨੀਕੀ ਨਿਰਧਾਰਨ

ਵਾਰੰਟੀ ਜਾਣਕਾਰੀ

OPTIMAL brake discs are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Optimal website. Typically, warranties cover manufacturing defects under normal use and service conditions. Damage resulting from improper installation, misuse, or neglect is generally not covered.

ਗਾਹਕ ਸਹਾਇਤਾ

For technical assistance, questions regarding product compatibility, or warranty claims, please contact your authorized Optimal dealer or the manufacturer directly. When contacting support, please have your product model number (BS-8624C) and purchase information readily available.

For general automotive repair advice, consult a certified automotive technician.
